Gold/Silver Series

The Silicon Nut
in Gold/Silver

Experience next-generation earring backs designed with Gold/Silver durability and a precision-molded silicon core for secure, daily-wear comfort.

View Specs Open Reports

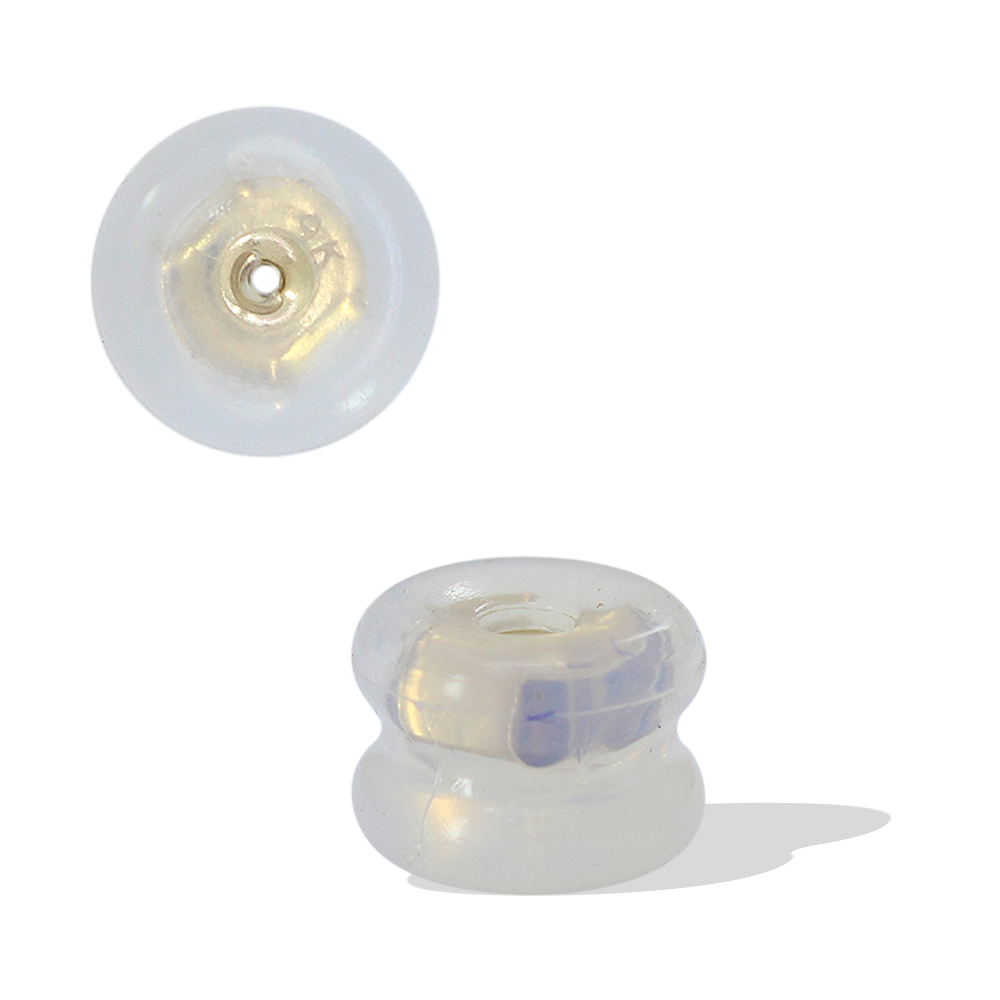

High-quality render of the Silicon Nut in 9Kt Gold

Introduction

Product Overview

The Gold Silicon Nut features a precision-molded silicone outer layer that encloses the gold component, providing a secure grip on the earring post while ensuring lasting comfort for everyday wear. It is tested in three thickness variants, as detailed below.

Friction Nut

A friction nut is thoroughly inspected and verified prior to encapsulation within the silicone body, ensuring secure engagement with the friction post, consistent retention, and reliable long-term performance.

Precision-Molded Silicone

Precision-molded silicone ensures a secure hold on the earring post with exceptional everyday comfort.

Macro display showing silicon nut mounted on earring post

Technical Details

Product Specifications

Product Code Dimensions (W x H x T) 9Kt/Y Gold Wt/Pc
(2026-27)P00163 6.30 x 5.00 x 0.10 mm 0.0328 gm
(2026-27)P00164 6.30 x 5.00 x 0.12 mm 0.0392 gm
(2026-27)P00165 6.30 x 5.00 x 0.15 mm 0.0495 gm
(2026-27)P00163
Dimensions6.30 x 5.00 x 0.10 mm
Gold Wt/pc0.0328 gm
(2026-27)P00164
Dimensions6.30 x 5.00 x 0.12 mm
Gold Wt/pc0.0392 gm
(2026-27)P00165
Dimensions6.30 x 5.00 x 0.15 mm
9Kt/Y Gold Wt/Pc0.0495 gm

Quality Standards

Reliability Testing Parameters

Surface Inspection For

  • Surface Scratches
  • Cracks
  • Porosity
  • Shape
  • Stamping Details
  • Silicon Outer Surface checks

Dimensional Inspection

  • Width: 6.30 mm
  • Height: 5.00 mm
  • Thicknesses: 0.10 mm, 0.12 mm & 0.15 mm

Stamping Sign & Position

For commercial orders, the following stamping signs and positions apply:

  • 9 Kt @ 12'o Clock position
  • 10 Kt @ 12'o Clock position
  • 14 Kt No Stamp
  • 18 Kt @ 12'o Clock position

Functional Inspection Methodology

Test Protocol

  • 1
    Cycle Testing: Conducted 300 ON/OFF cycle tests on samples of each thickness.
  • 2
    Load Assessment: Performed a dead weight holding test after every 100 cycles.
  • 3
    Test Loads: The dead weight holding test was conducted using the following loads:
    10 g 15 g 20 g

Example (0.10 mm Thickness)

100 Cycles Completed

Conducted the first 100 on-off cycles.

Friction Dead Weight Test

After completion of 100 cycles, performed the dead weight holding test using 10 g, 15 g, and 20 g loads.

Repeat Until 300 Cycles

The same procedure was repeated after every subsequent 100 ON/OFF cycles until completion of the total 300 cycles.

Reliability Test was conducted on 4 pieces from each sample size of 20 pieces, and the Test Records are attached for reference.

Comfort & Grip Assessment

Silicon Hardness

Silicon Nut Sample

60 A

Shore A Durometer rating optimizes comfortable daily wearing elasticity and secure post friction holding capability.

Japan Sample

66 A

Stiffer Shore A durometer hardness. Offers rigid post grip but is less yielding for regular daily earlobe insertion and removal.

Laboratory Proof

Testing Videos

Official Documentation

Testing Reports

Reliability Test Records

Click Open PDF to view details
Download

Hardness Testing Report

Click Open PDF to view details
Download
